Stewart Golf X Series Lithium Battery (22Ah)

PlayBetter is a trusted Authorized Dealer for this brand. All purchases are eligible for full manufacturer warranty protection.
Original price $299.00 - Original price $299.00
Original price $299.00
$299.00 - $299.00
Current price $299.00

Need Help?

Talk with an expert Need expert advice?

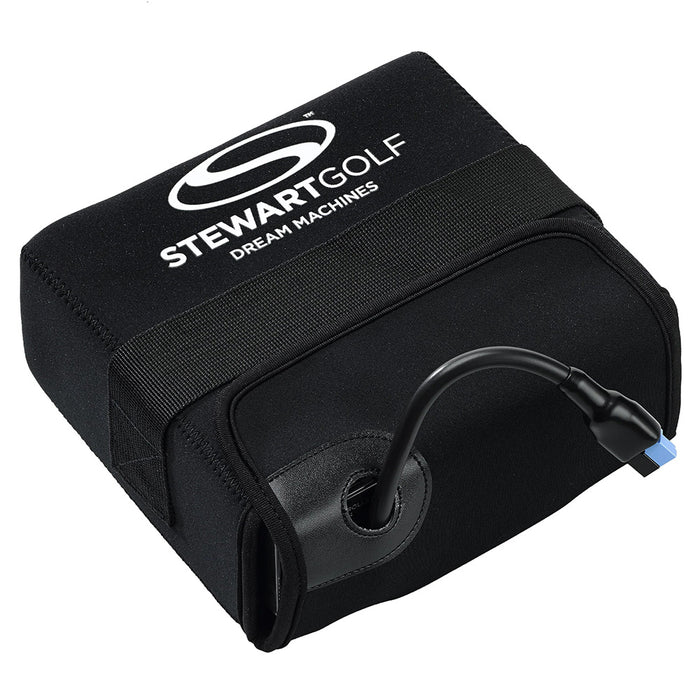

The lithium battery that is supplied as standard with the X7 Lithium, X9, and X10 can be used with X Series carts of all ages.

The new Lithium Phosphate 22Ah can be used in any X Series (X1, X3, X5, X7, X9, or X10). There are no electronic changes or adjustments necessary; you can just start using the new battery as a direct replacement.


The battery is protected by a sophisticated battery management system (BMS) that constantly monitors every cell to ensure the battery is always optimized for the best performance and life. It is supplied complete with battery lead and a protective neoprene case.

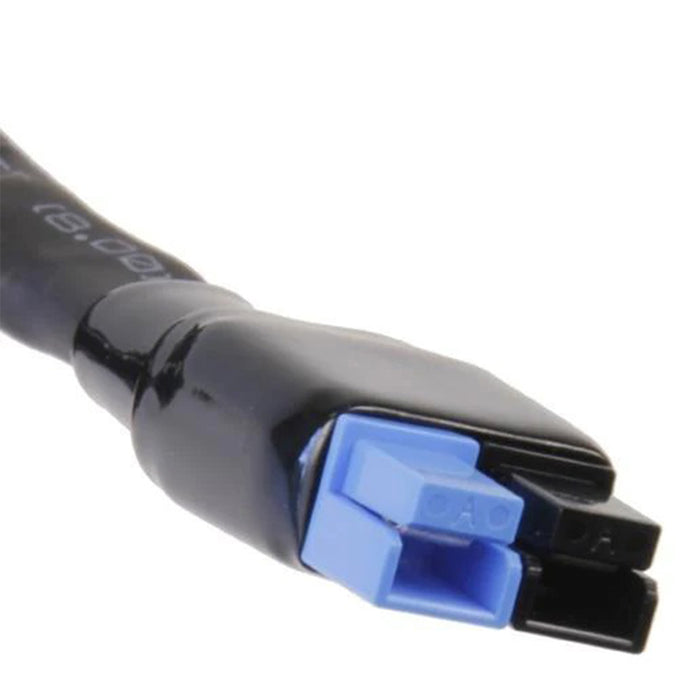

You will note that the lithium battery is supplied with blue/black connectors, whereas your trolley may be fitted with red/black connectors. This change has been made to emphasize the importance of using the correct battery charger with this battery - using the wrong charger could damage the battery.

  • Type: LiFePO4 (Lithium Phosphate)
  • Voltage: 12.8 Volts nominal, 14.4 Volts fully charged
  • Capacity: 22 Amp hour
  • Energy: 316 Watt-hours
  • Size: 188mm x 160mm x 75mm (7.4” x 6.3” x 2.9”)
  • Weight: 2.9Kg (5.7lb)
  • Life: More than 1000 cycles (see below)
  • Warranty: 2 years
  • Management: Internal integrated cell management system
  • Connection: Torberry/Anderson
  • Accessories: Quality fitted soft-touch protection bag
  • Charger: Input 100/240V, 50/60 Hz, Output 14.6V, 5 Amp
  • Charge Time: Up to 5 hours
  • Size: 155mm x 70mm x 50mm ( 6.1” x 2.7” x 2.0”)
  • In laboratory conditions over 1000 simulated charge cycles, the battery will retain at least 80% of its capacity.
  • The battery can be expect to lose 2-3% capacity per year through cell degradation, compared with a lead/acid battery which can lose 8-9% per year.
  • During testing of the battery with the Stewart Golf X-Series, its average use was 12-15Ah of the 22Ah battery per round of golf.
  • X Series Lithium Battery (22Ah)
